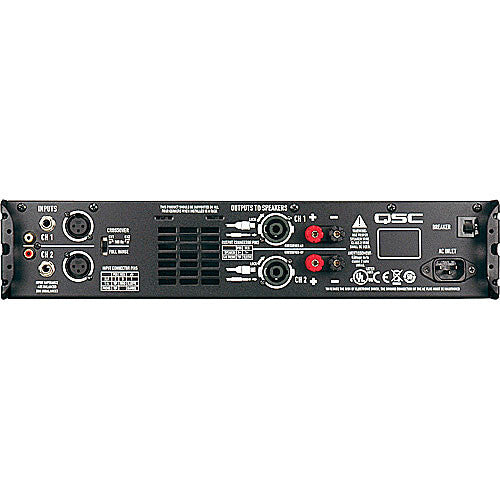

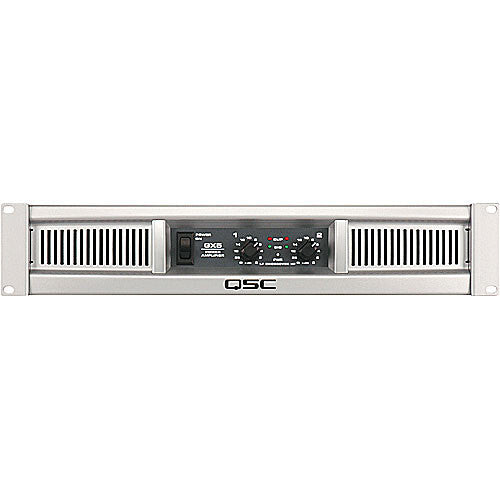

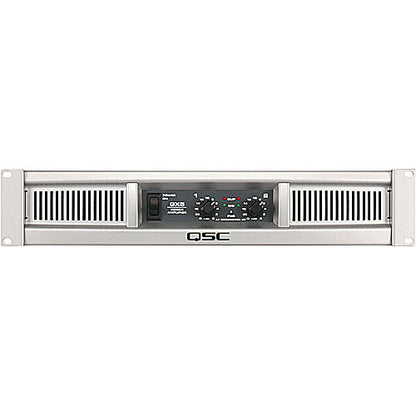

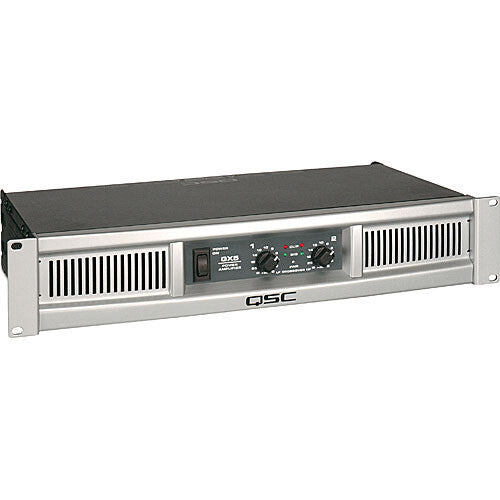

QSC GX5-TD GX Series Amplifier for Speakers in the 500W Range

UPC: 684284055361
Manufacturer: QSC
AC Input Power: 120 VAC, 60 Hz
AC Power Connector: 1 x IEC 15 A / NEMA 5-15
Amplifier Class: 2-Tier Class-H
Certifications: CE, RoHS, UL, WEEE *as per Manufacturer
Cooling: 1 x Fan
Crossover: Low-Pass: 100 Hz, 18 dB/Octave High-Pass: 100 Hz, 12 dB/Octave
Current Consumption: 120 VAC, 4 Ohms: 6 A (1/8 Power) 0.3 A (Idle)
Display & Indicators: Red LED (Clip) Green LED (Signal) Blue LED (Power)
Distortion: < 0.02% (1 kHz, at 8 Ohms, at Rated Power) 0.05% (1 kHz, at 4 Ohms, at Rated Power)
Frequency Response: 20 Hz to 20 kHz +0/-1 dB
I/O: 2 x Combo speakON-1/4 NL4 Output 2 x Binding Post Pair 2-Pin Outp
Input Impedance: >20 Kilohms (Balanced)
Input Sensitivity: 1.2 Vrms
Limiting: Yes
Load Impedance / Voltage: 4 / 8 Ohms
Max Gain: 34.4 dB
Max Input Level: +24 dBu / 16 Vrms
Model: GX5
Power Rating: 8 Ohms: 500 W Both Channels Driven (1 kHz, 0.1% THD) 600 W One Channel Driven (1 kHz, 0.1% THD) 4 Oh
Protections: DC Fault,Open Circuit,RF,Short Circuit,Thermal
Rackmount Size: 2 RU
SNR: 100 dB
Brand: QSC
Type: Power Amplifier
Number of Channels: 2
MPN: GX5
