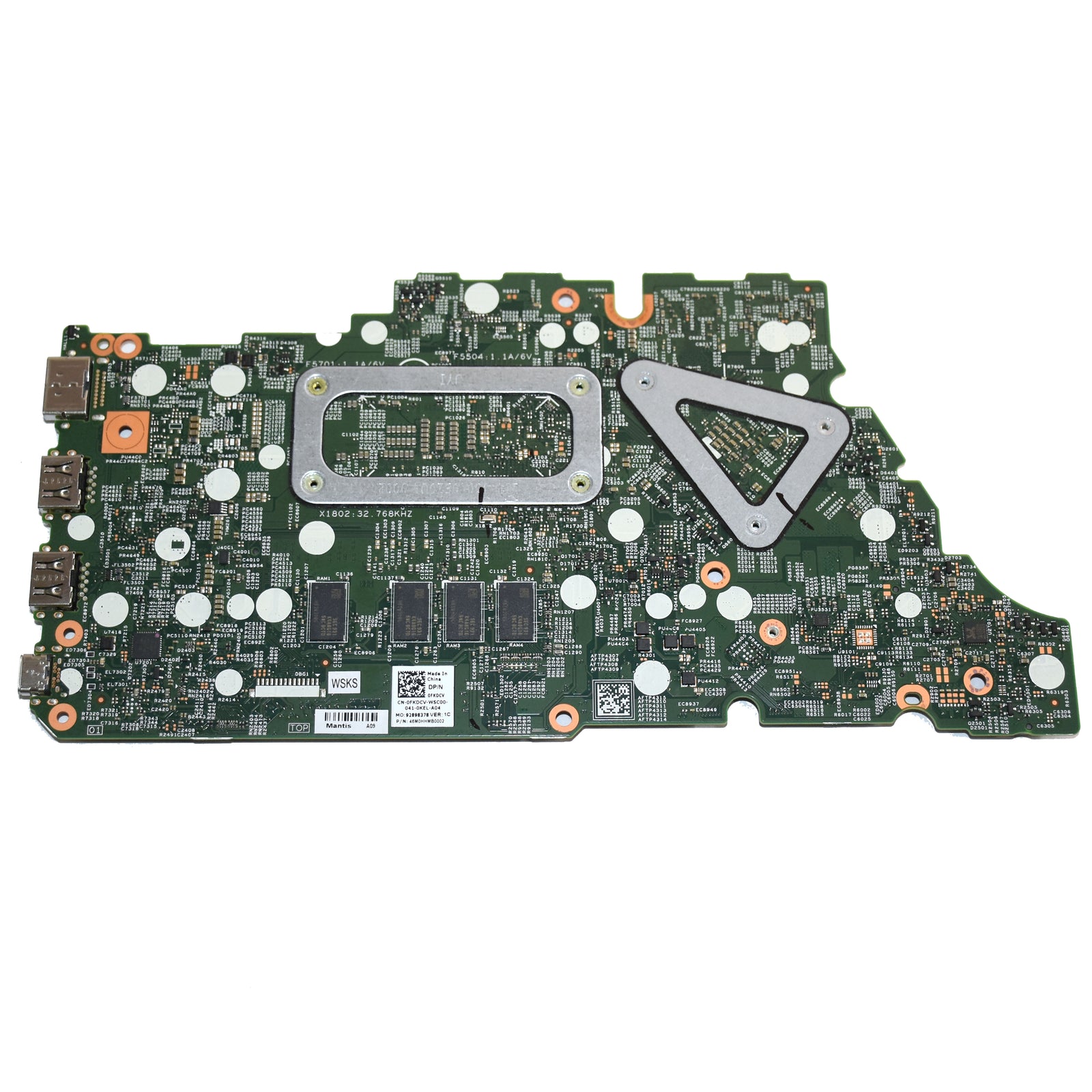

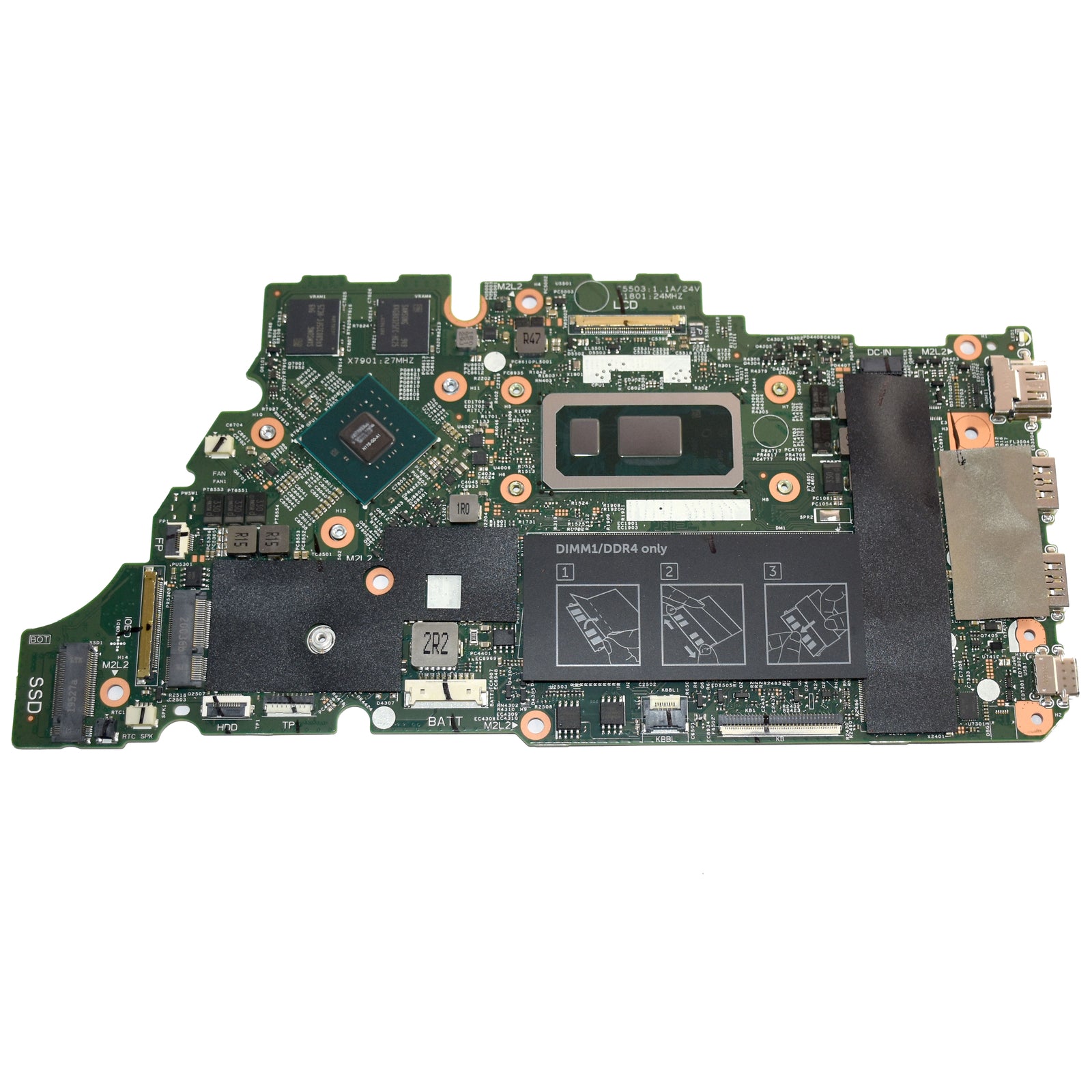

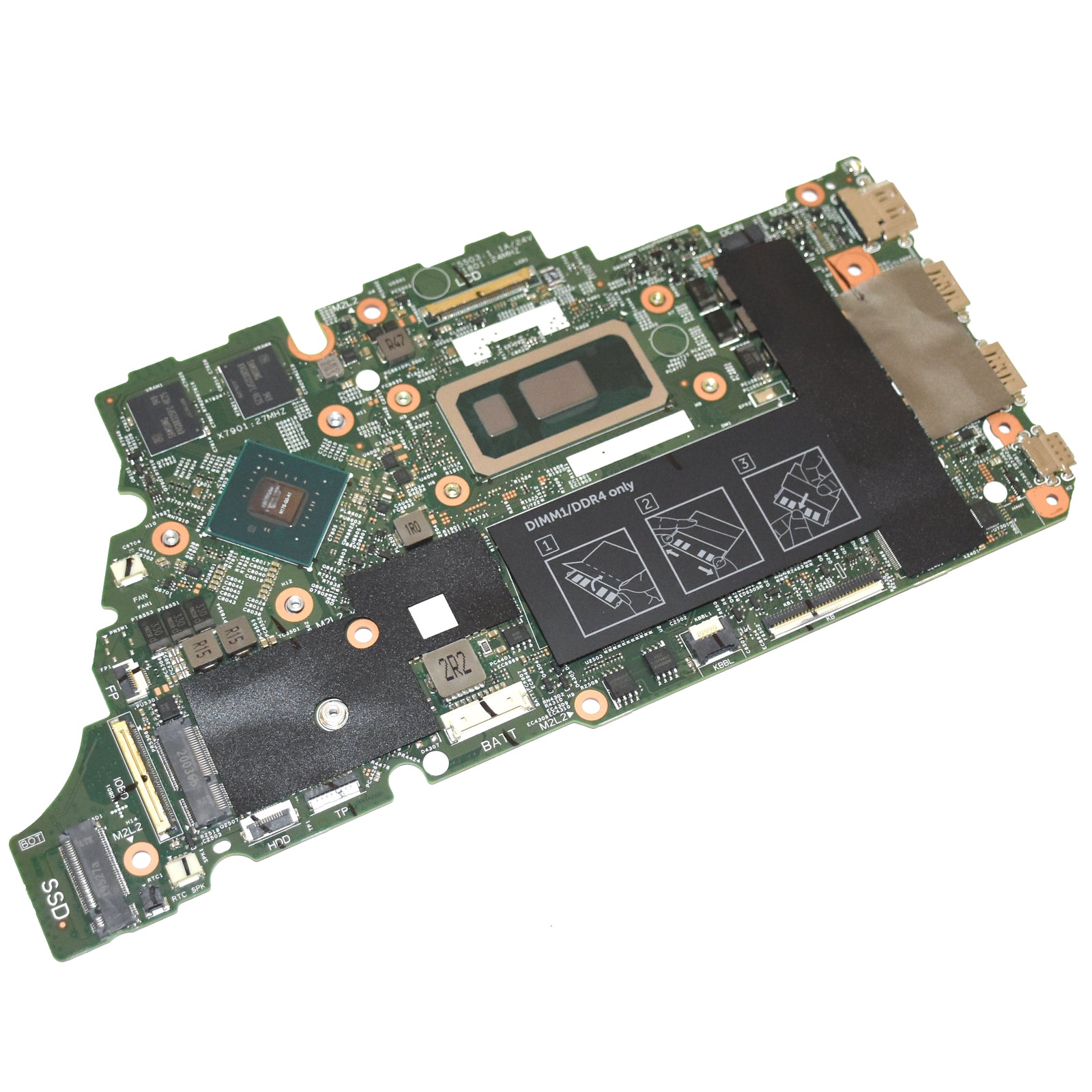

Dell Vostro 5490 5590 Motherboard Core i5-10210U 4GB RAM NVIDIA MX230 FKDCV

Brand: Dell
Model: 18778-1
MPN: FKDCV, 0FKDCV, CN-0FKDCV
Country/Region of Manufacture: China
Type: Motherboard
Compatible Model: for Dell Vostro 5490 5590
Compatible Product Line: For Dell Inspiron
Compatible Brand: For Dell
Max Turbo Boost: Up to 4.2 GHz
Base Clock: 1.6 GHz
Processor Model: Intel Core i5-10210U (10th Generation Comet Lake)
Integrated GPU: Intel UHD Graphics
TDP: 15W
Cache: 6MB Intel Smart Cache
Cores / Threads: 4 Cores / 8 Threads
Optional Discrete GPU: NVIDIA GeForce MX230
GPU Memory (Discrete): 2 GB GDDR5
Video Output: One HDMI 1.4b port
Memory Type: DDR4, Dual Channel
Base (Onboard) RAM: 4GB DDR4 (soldered)
Memory Slot(s): 1 x SODIMM slot
Maximum Supported Memory: Up to 20GB total (4GB onboard + 16GB via SODIMM)
Memory Speed Supported: Up to 2666 MHz
M.2 Slot (Storage): 1 x M.2 2230/2242/2280 (NVMe SSD or Intel Optane support)
undefined: 1 x M.2 2230/2242/2280 (NVMe SSD or Intel Optane support)
M.2 Slot (WiFi/BT): 1 x M.2 2230 for WiFi & Bluetooth combo card
UPC: 17222342979
