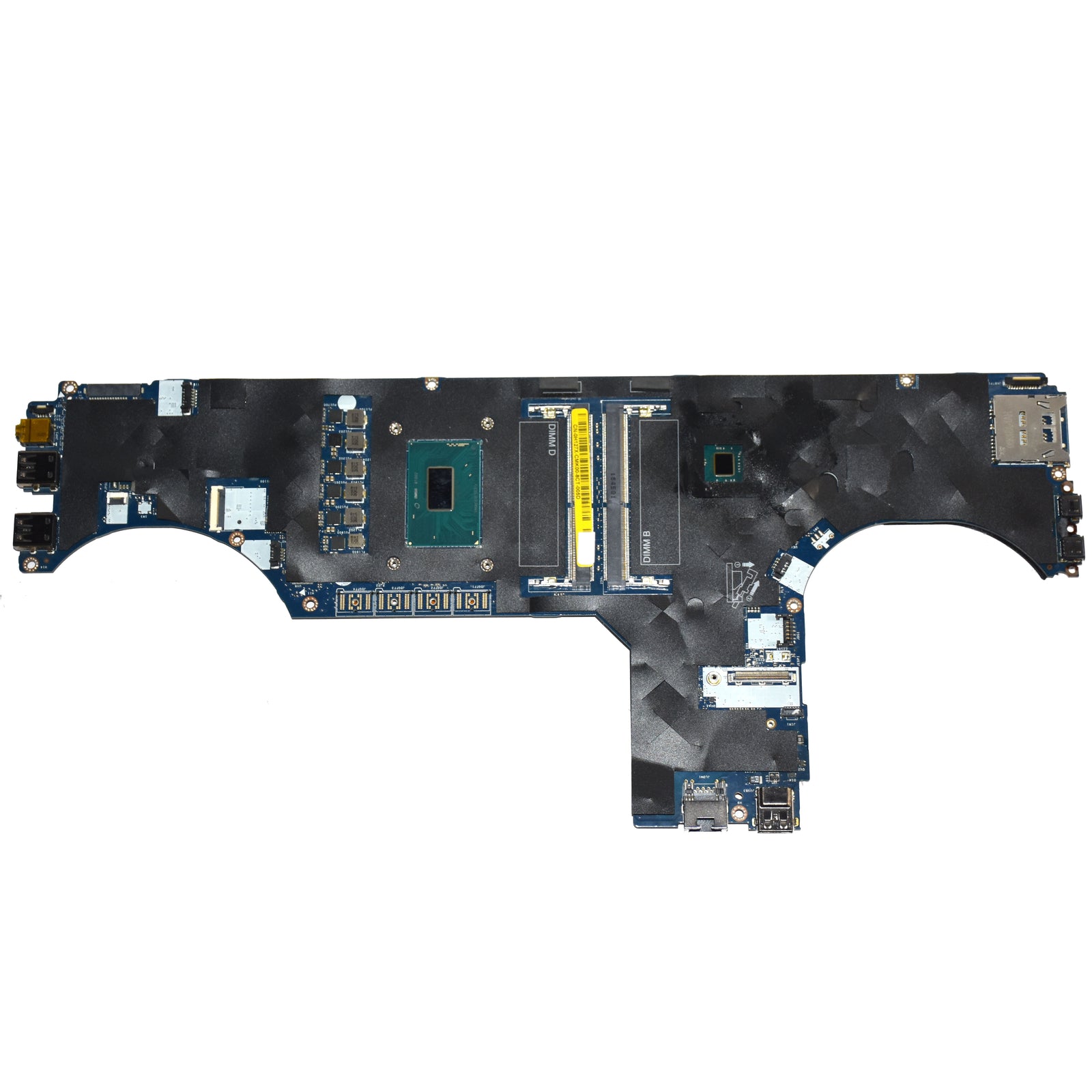

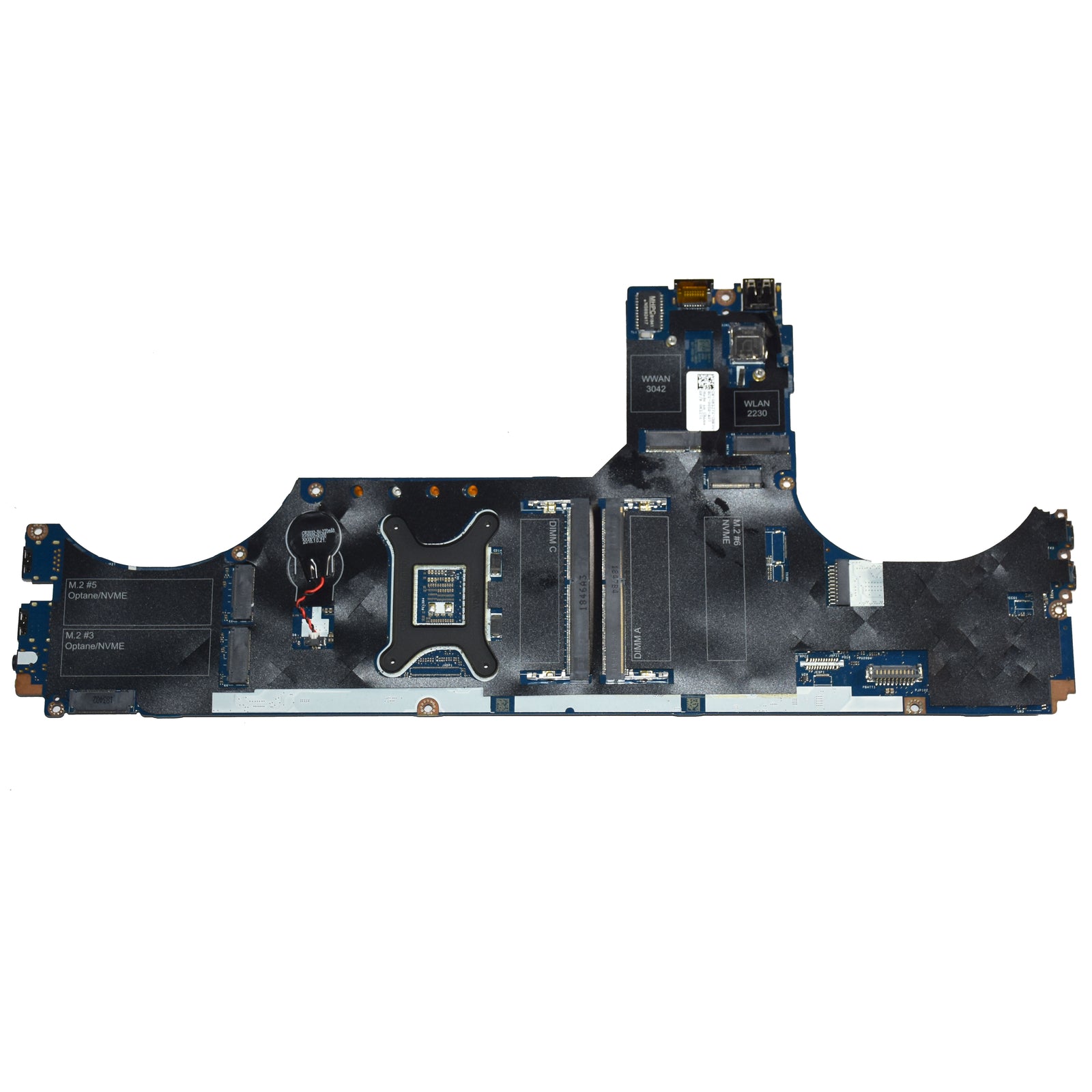

Dell Precision 7730 Motherboard Intel Xeon E-2176M CPU 2.7GHz 6-Core H127X

Brand: Dell
Processor: Intel Xeon E-2176M
Type: Motherboard
MPN: H127X, 0H127X, CN-0H127X
Country/Region of Manufacture: China
Chipset: Intel CM246
Compatible Model: For Dell Precision 7730
Compatible Product Line: For Dell Precision
Compatible Brand: For Dell
Architecture: Coffee Lake
Cores / Threads: 6 Cores / 12 Threads
Base Clock: 2.7 GHz
Max Turbo Boost: Up to 4.4 GHz
Cache: 12 MB Intel Smart Cache
TDP: 45W
Integrated GPU: Intel UHD Graphics P630
vPro Support: Yes
Dedicated GPU Support: Yes (via MXM slot)
Memory Supported Type: DDR4 SDRAM, ECC and Non-ECC
Memory Speeds Supported: 2400 MHz, 2666 MHz, 2933 MHz

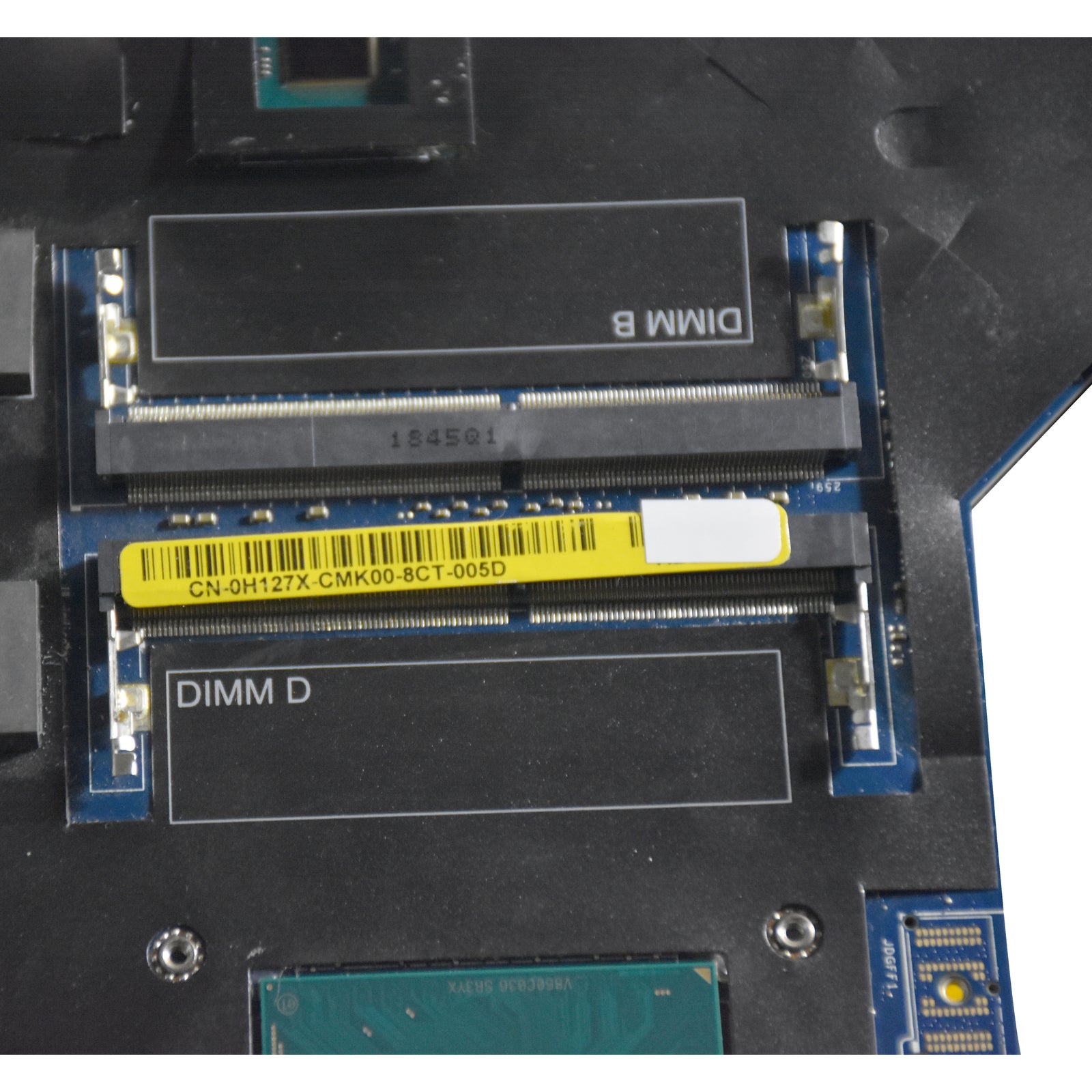

Memory Slots: 4x SODIMM
Max Memory Per Slot: 32 GB
Max Total Memory: 64 GB
Minimum Memory Configuration: 8 GB
Supported Configurations: 8 GB (1 x 8 GB), 16 GB (1 x 16 GB or 2 x 8 GB), 32 GB (1 x 32 GB, 2 x 16 GB, or 4 x 8 GB), 64 GB (2 x 32 GB or 4 x 16 GB)
Drive Bays: Up to 4x M.2 2280 slots
Interfaces Supported: SATA III (6 Gbps), PCIe Gen3 x4 NVMe (32 Gbps)
Security Options: SED (Self-Encrypting Drive)
Max Capacity: SATA: Up to 2 TB, NVMe: Up to 2 TB per slot
Model: LA-F601P
UPC: 17222403298
