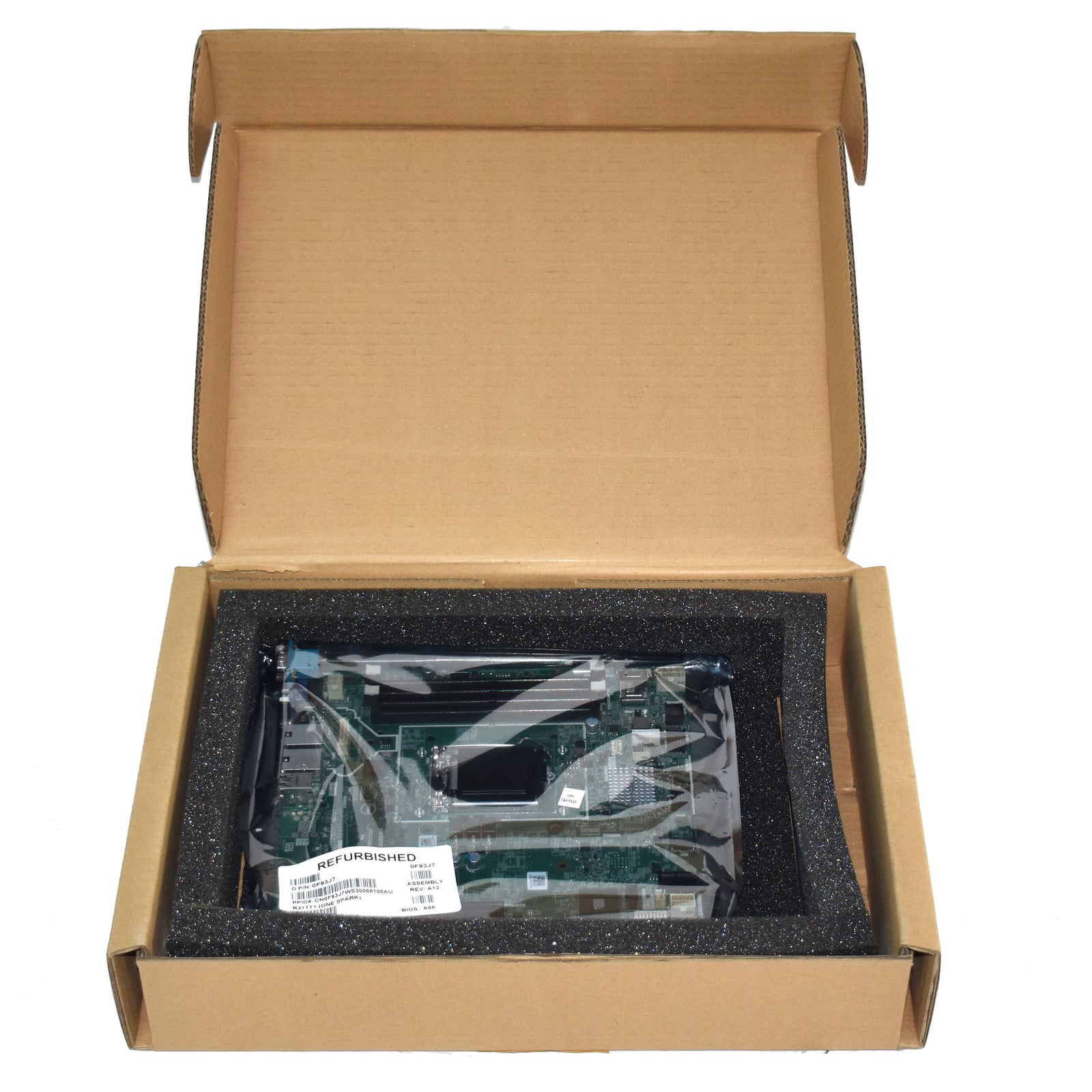

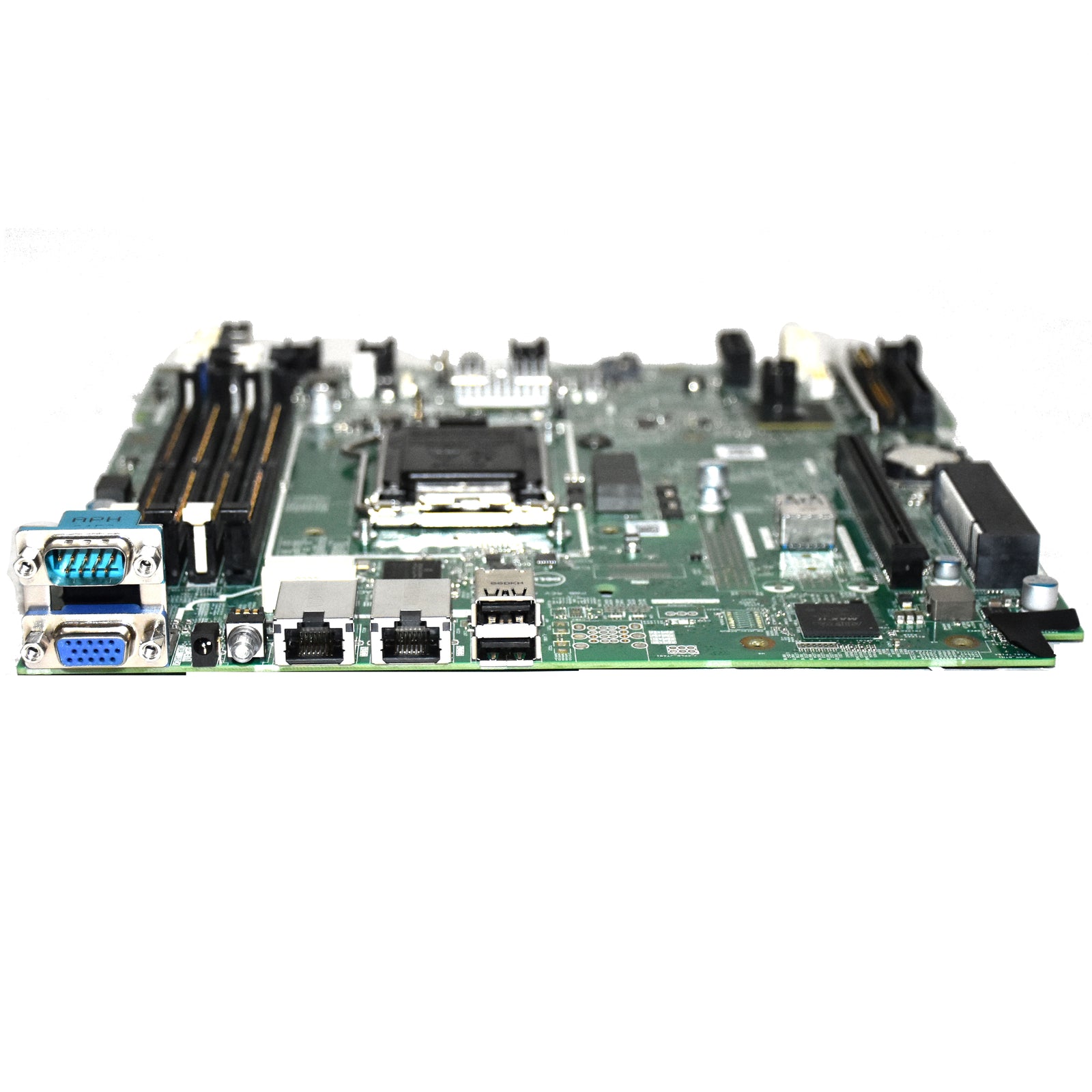

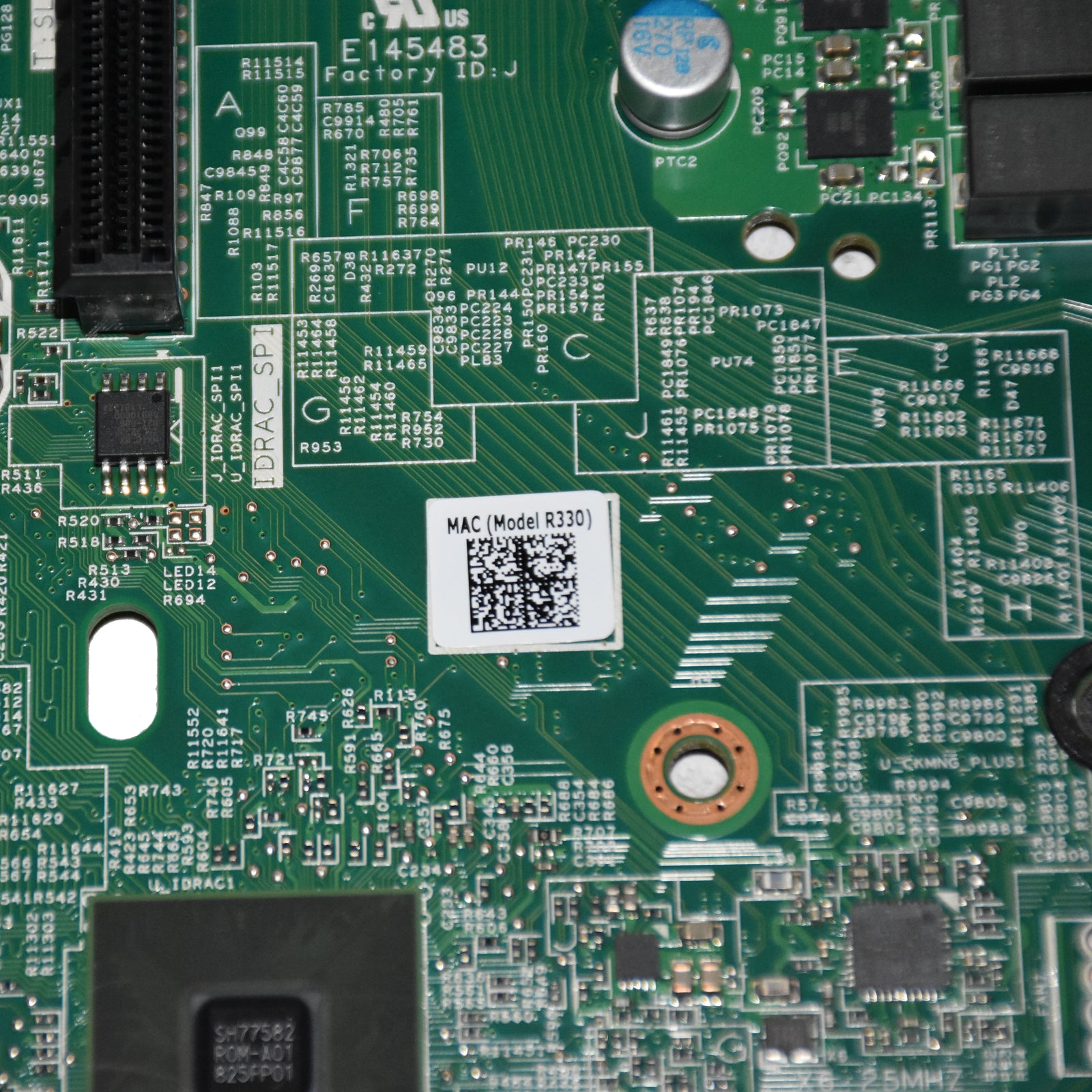

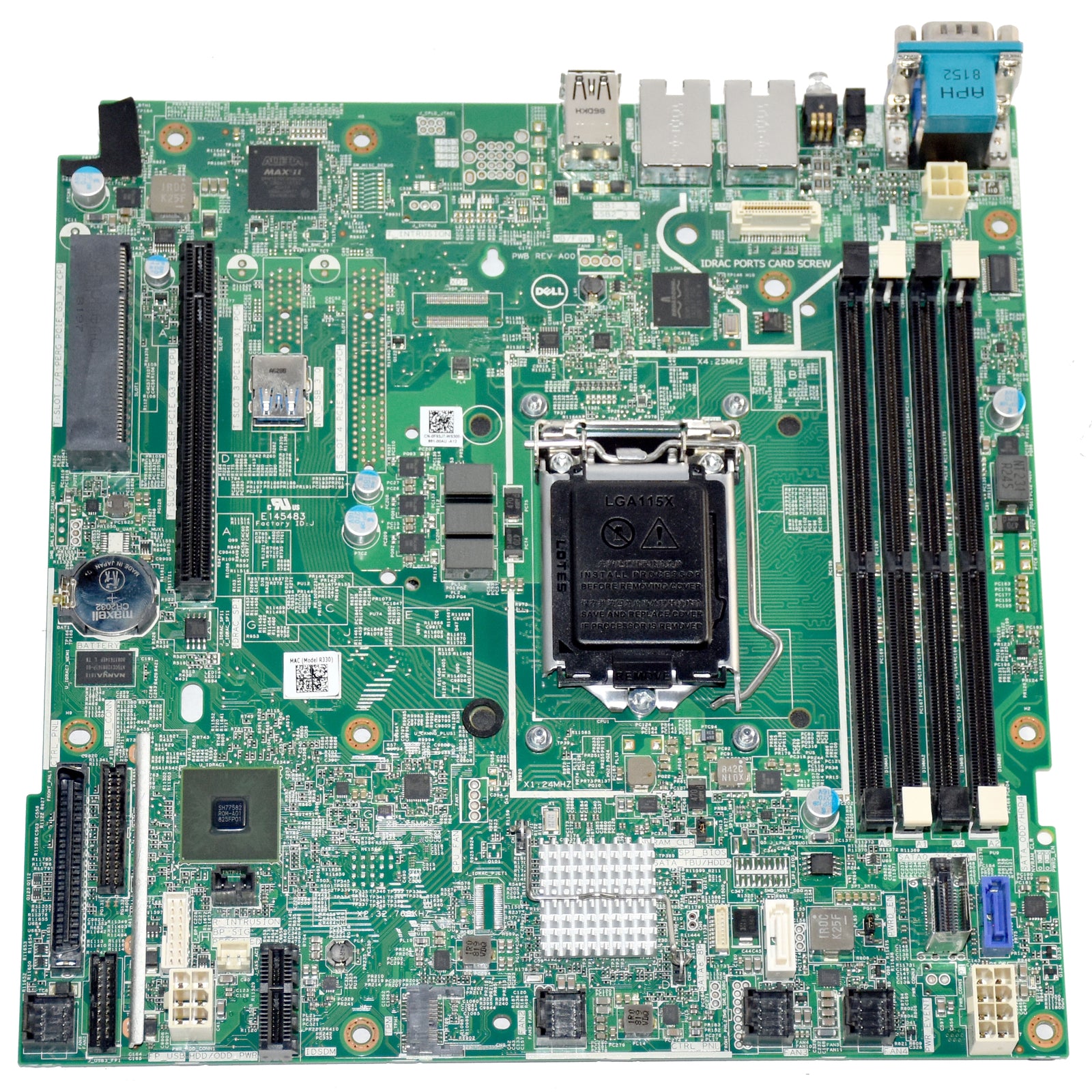

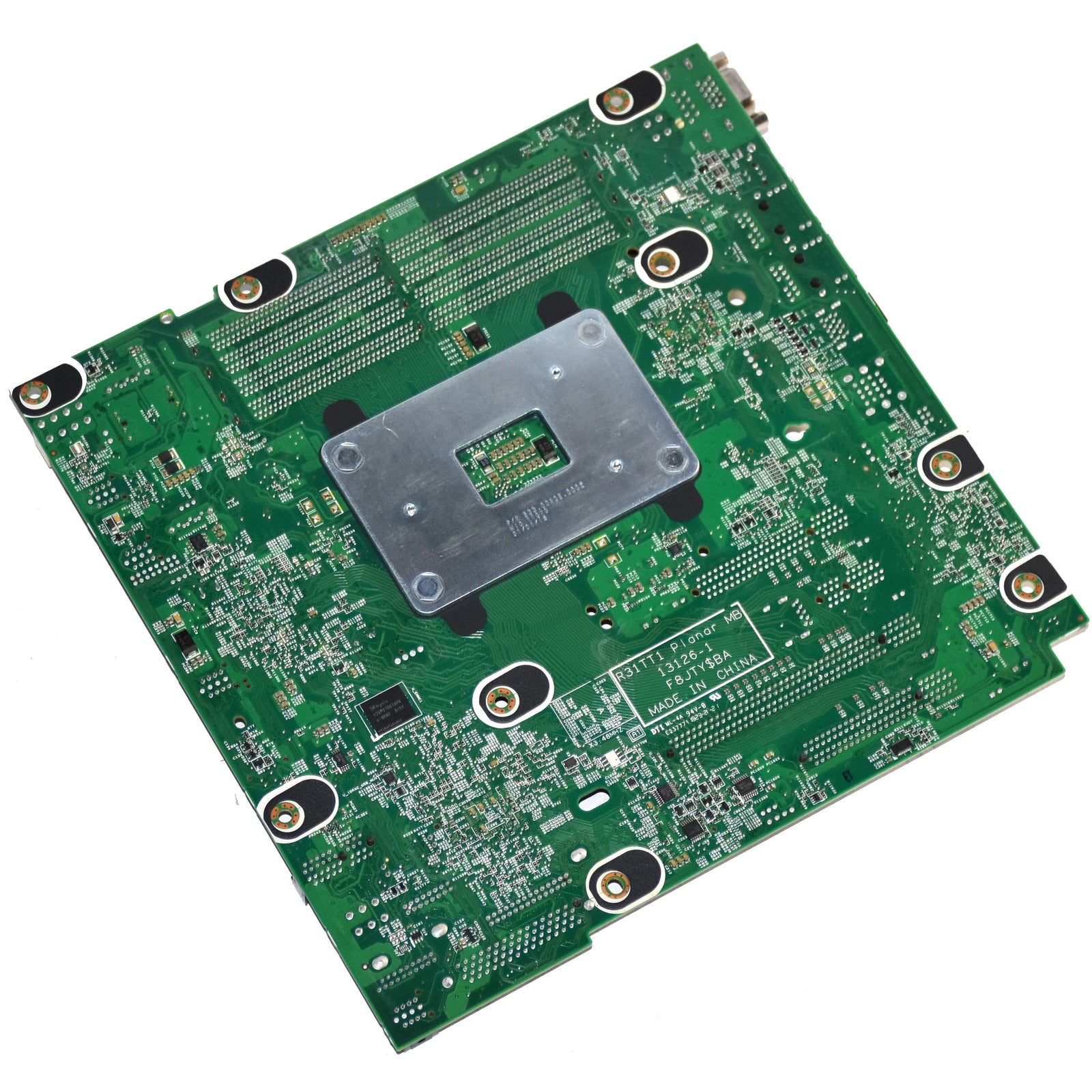

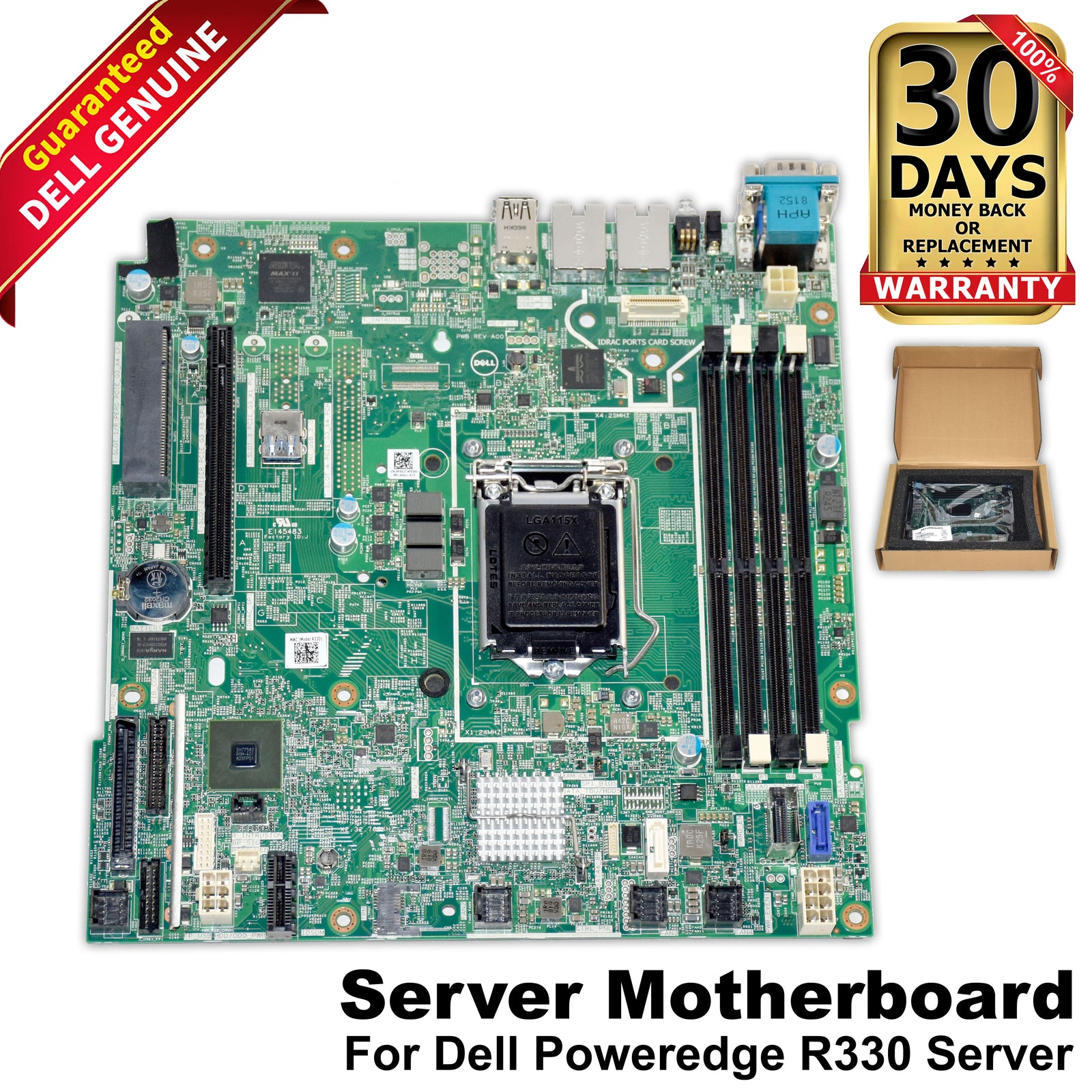

Dell PowerEdge R330 DDR4 Server Motherboard Intel C236 LGA1151 Socket F93J7

Brand: Dell
Type: Server Motherboard
MPN: F93J7, 0F93J7, CN-0F93J7
Country/Region of Manufacture: China
Compatible Model: For Dell PowerEdge R330
Compatible Product Line: For Dell PowerEdge
Compatible Brand: For Dell
Chipset: Intel C236
Processor Support: Intel Xeon E3-1200 v5/v6 series, Intel Core i3, Intel Pentium, Intel Celeron (LGA1151 socket)
Memory Type: DDR4 ECC UDIMM
Memory Slots: 4 x DIMM slots
Maximum Memory Supported: Up to 64GB ECC UDIMM (16GB per slot)
Storage Interfaces: SATA III (6Gb/s), Supports optional hardware RAID via PERC controllers
Expansion Slots: 1 x PCIe Gen3 x16, 1 x PCIe Gen3 x8
Networking: Integrated Broadcom dual-port GbE LOM
Power Connector: Standard 24-pin ATX + 8-pin CPU power
UPC: 17222690728
