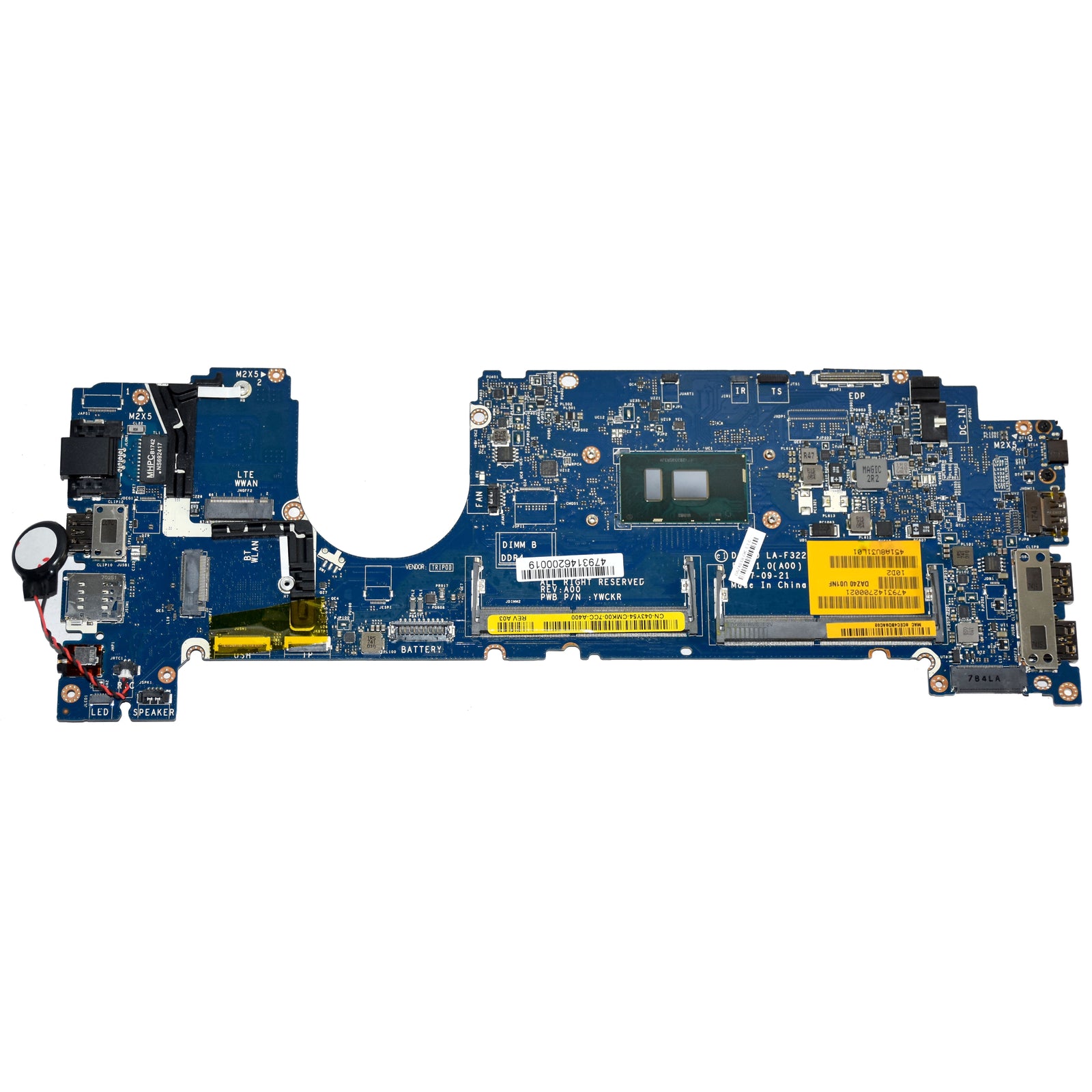

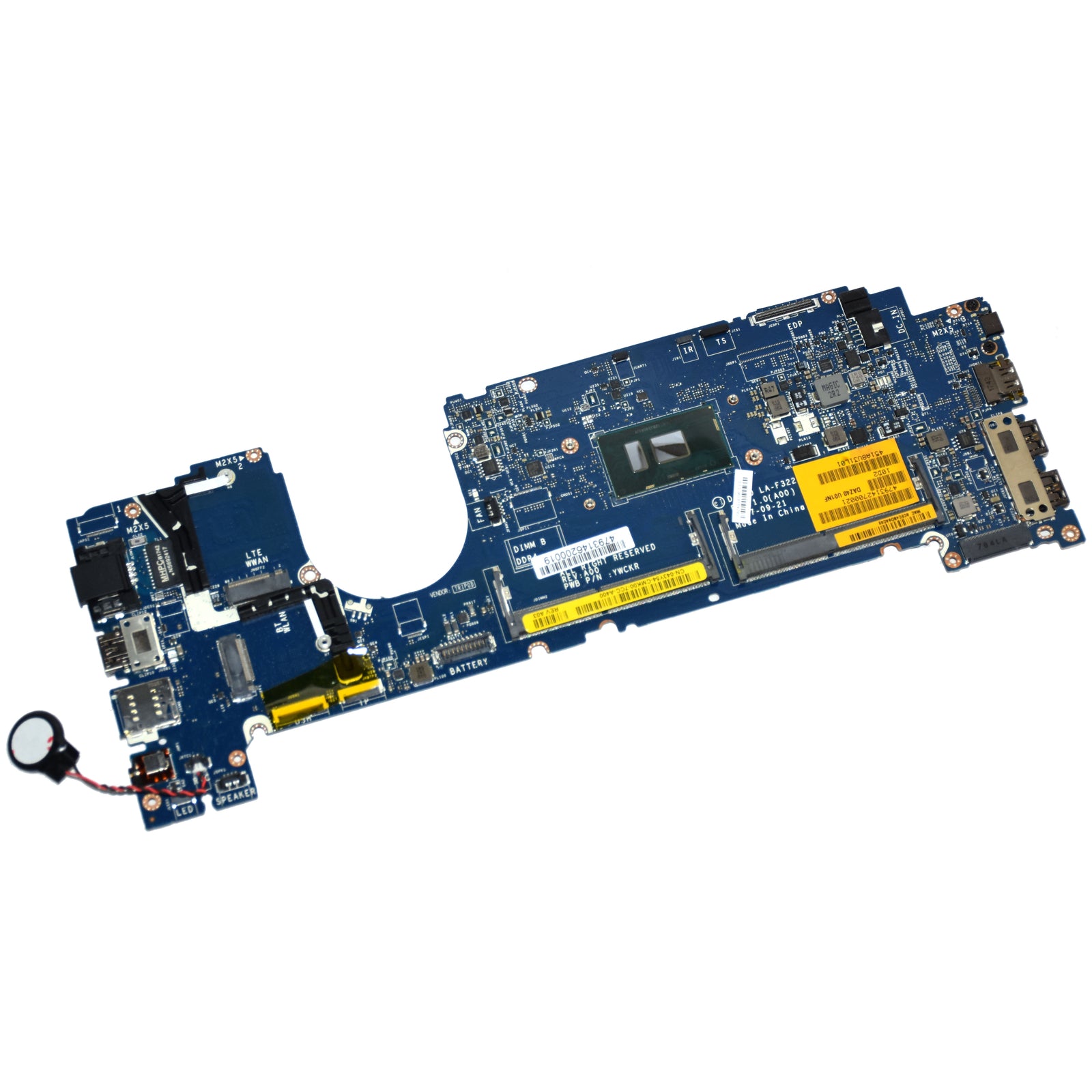

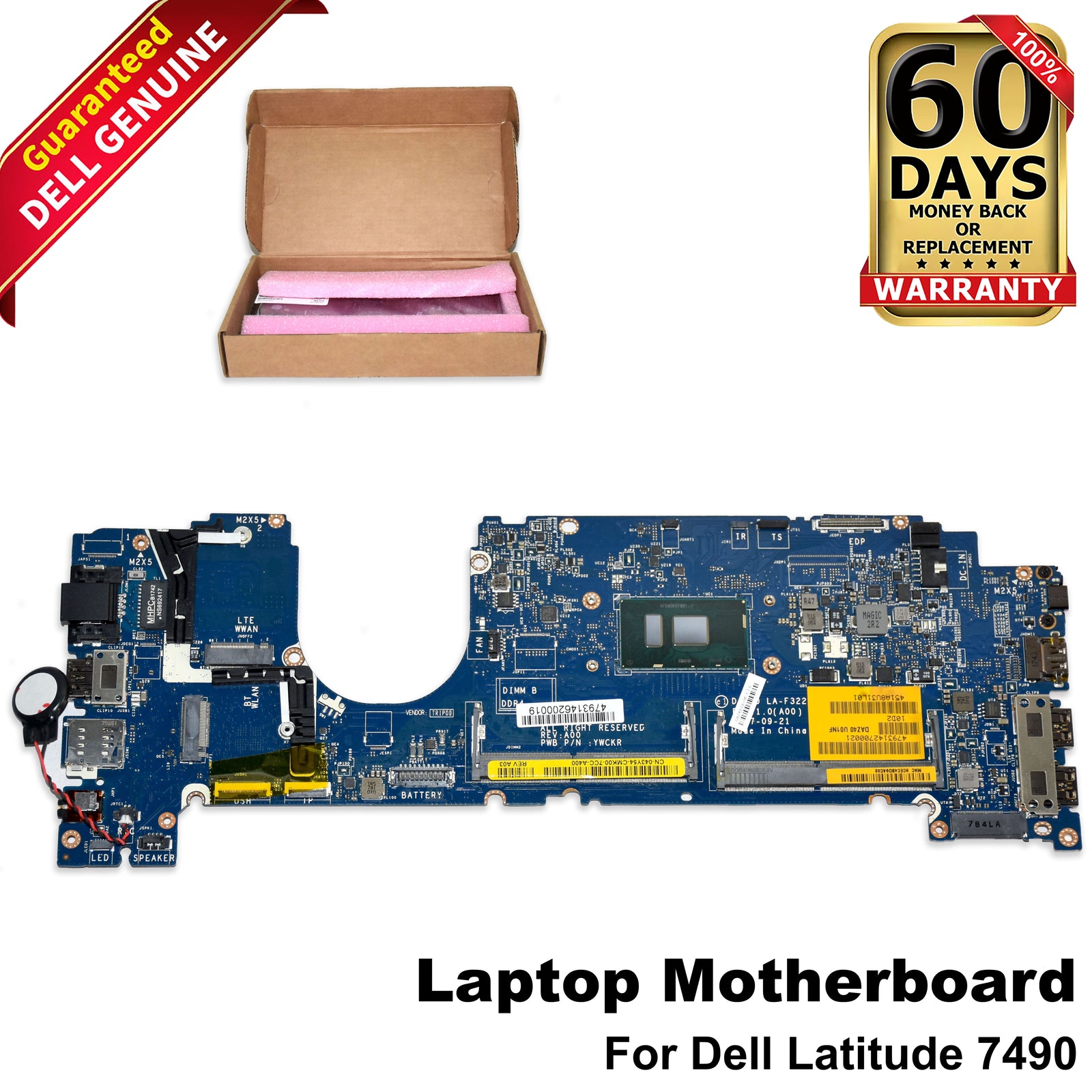

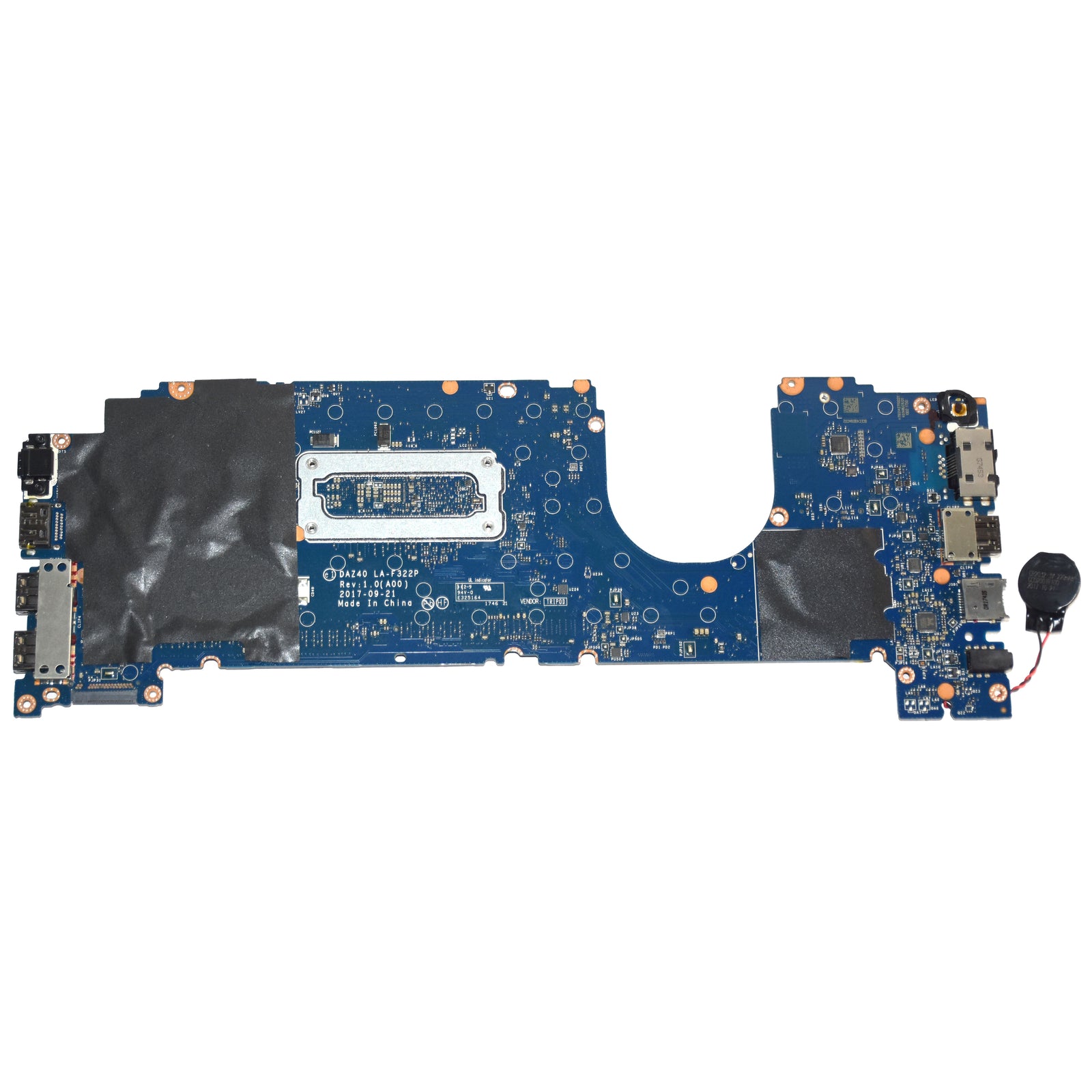

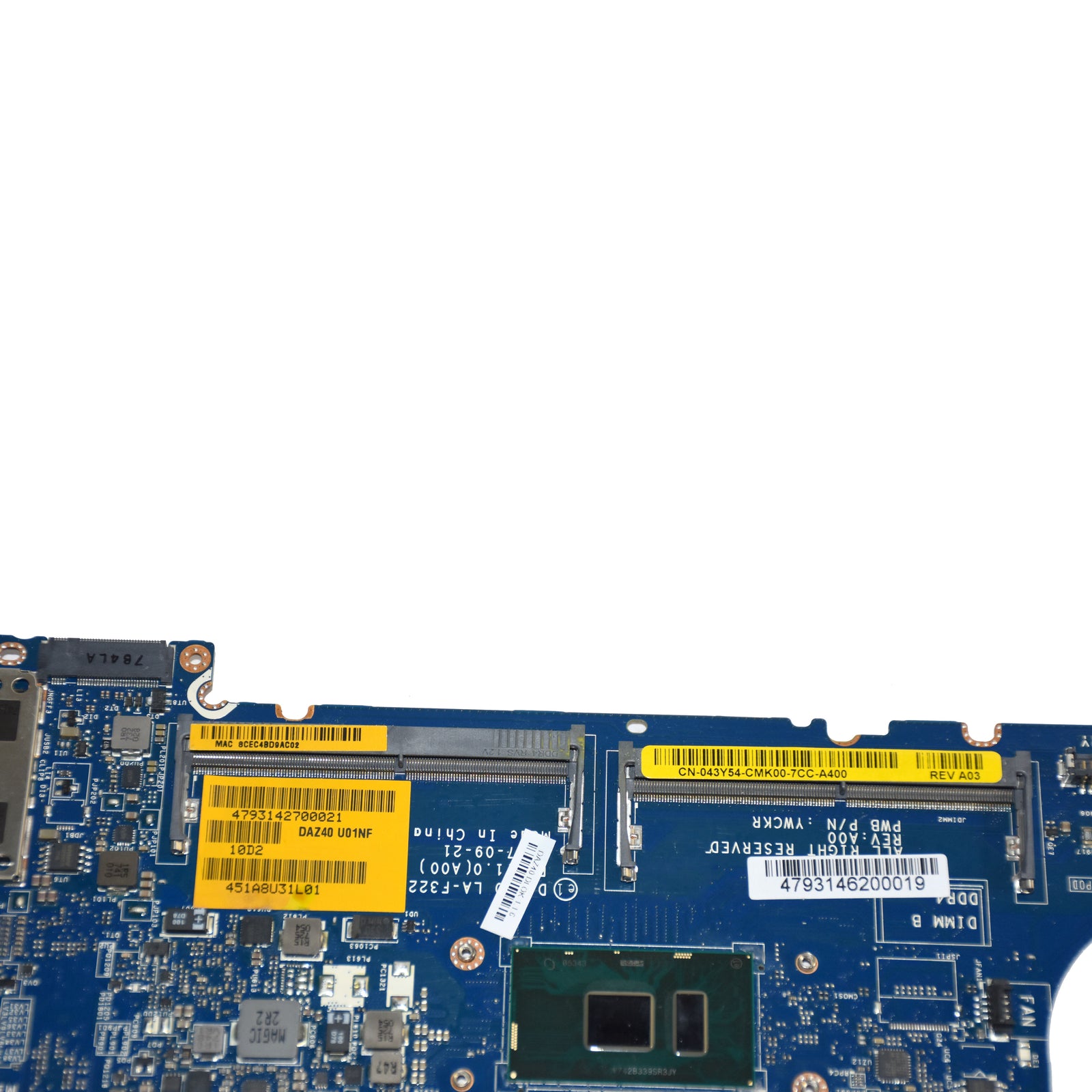

Dell Latitude 7490 Motherboard i3-7130U Dual-Core 2.7GHz LA-F322P 43Y54

Brand: Dell
Model: LA-F322P
MPN: 43Y54, 043Y54, CN-043Y54
Country/Region of Manufacture: China
Type: Laptop Motherboard
Compatible Model: For Dell Latitude 7490
Compatible Product Line: For Dell Latitude
Compatible Brand: For Dell
Processor Model: Intel Core i3-7130U
Cores/Threads: 2 Cores / 4 Threads
Base Frequency: 2.7 GHz
Cache: 3 MB SmartCache
Chipset: Integrated into processor (SoC architecture)
Architecture: Kaby Lake (7th Gen Intel Core)
TDP: 15W
Memory Type: DDR4 SDRAM
Supported Memory Speeds: DDR4-2133 with 7th Gen CPUs, DDR4-2400 with 8th Gen CPUs (not applicable with i3-7130U)
Memory Slots: 2x SODIMM slots
Max RAM Supported: Up to 32 GB
Bus Width: 64-bit
Integrated GPU: Intel HD Graphics 620
DirectX Support: DirectX 12
Max Display Resolution (HDMI): 4K @ 30Hz (HDMI 1.4)
Max Display Resolution (USB-C/DP): 4K @ 60Hz (when using optional Thunderbolt 3)
Supported Storage Types: M.2 2280 SSD (SATA and PCIe)
Compatible Storage Options: 128GB / 256GB / 512GB M.2 SATA SSD, 128GB / 256GB / 512GB / 1TB M.2 PCIe NVMe SSD, 256GB / 512GB M.2 PCIe NVMe SED (Self-Encrypting Drive)
Processor: Intel Core i3-7130U
UPC: 17222497525
